Nacos 2.5.0 深度适配PostgreSQL全流程

06-01 1685阅读

1.依赖配置阶段

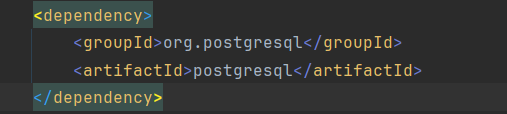

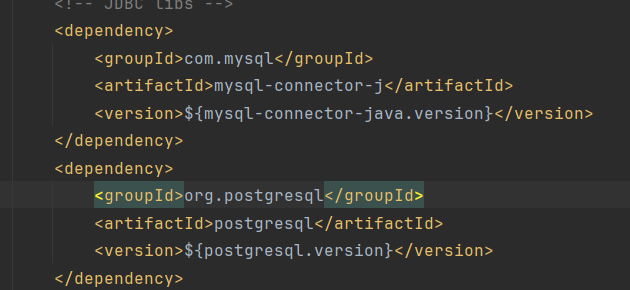

在项目根目录(nacos-all)的pom.xml中引入PostgreSQL驱动依赖

为nacos-config-plugin和nacos-persistence模块添加PostgreSQL相关依赖

2.数据源适配改造

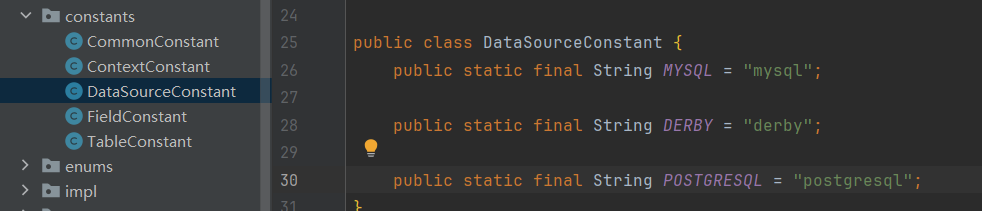

修改nacos-datasource-plugin模块下的DataSourceConstant常量类，新增PostgreSQL相关常量

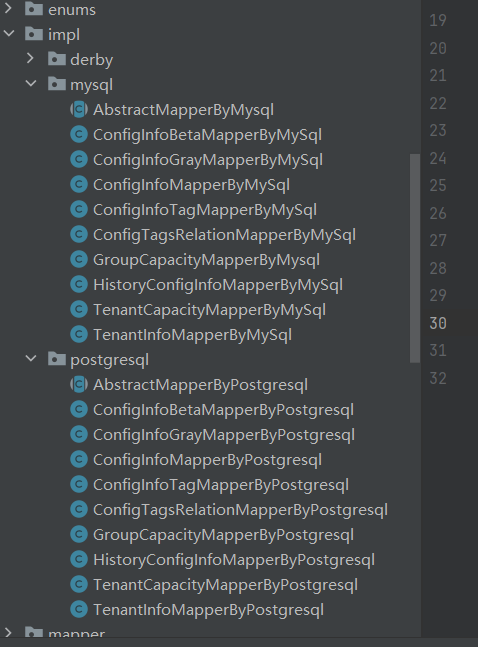

在impl目录下新建postgresql包，基于MySQL实现类复制改造：

重命名类后缀为Postgresql

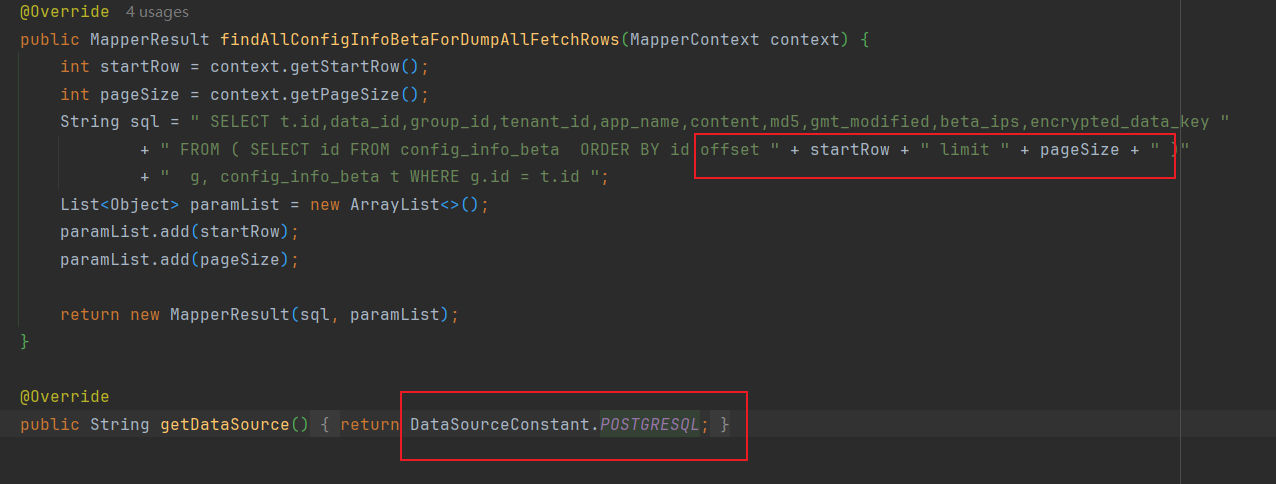

调整SQL分页语法为PostgreSQL特有的OFFSET ? LIMIT ?格式

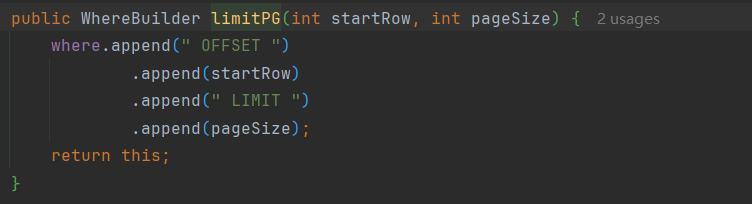

将where.limit方法改造为where.limitPG

3.持久层配置优化

在nacos-datasource-plugin模块下的resource/mapper目录下新增PostgreSQL专属的Mapper文件

com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoBetaMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoTagMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoGrayMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigTagsRelationMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.HistoryConfigInfoMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.TenantInfoMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.TenantCapacityMapperByPostgresql
com.alibaba.nacos.plugin.datasource.impl.postgresql.GroupCapacityMapperByPostgresql

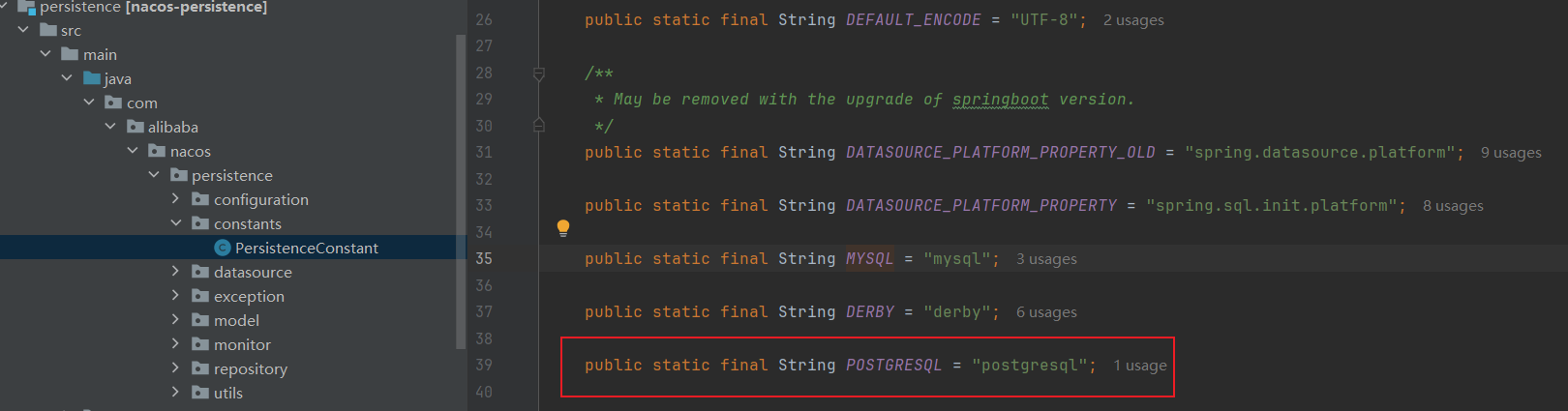

nacos-persistence模块下修改PersistenceConstant类补充PostgreSQL支持

nacos-persistence模块下重构ExternalDataSourceProperties类：

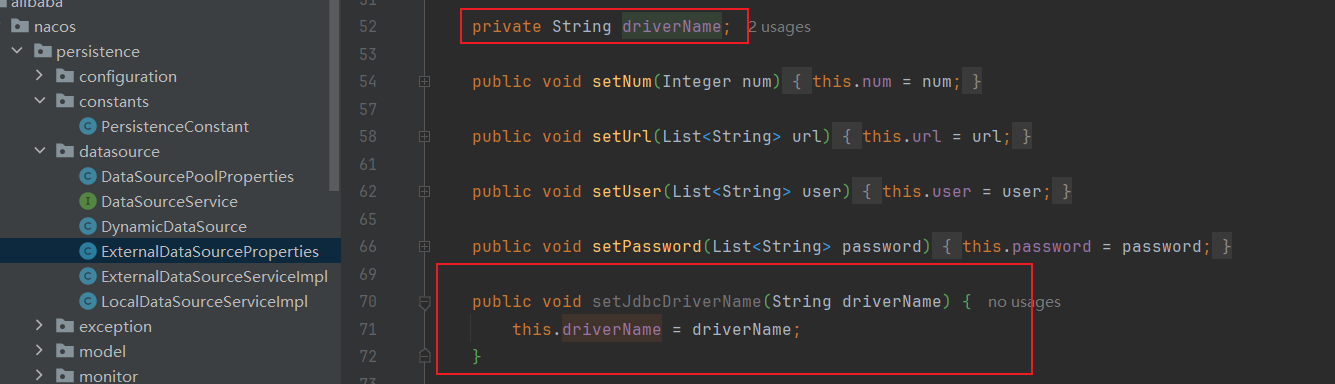

新增driverName属性及setter方法

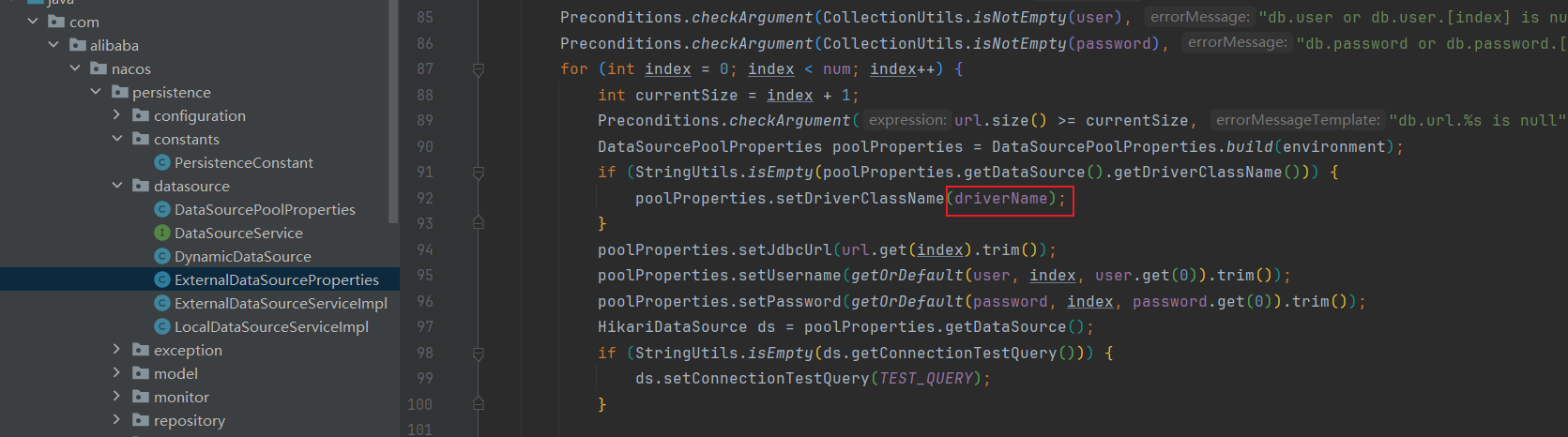

将静态的JDBC_DRIVER_NAME改为动态获取驱动名称

4.分页处理适配

在default-auth-plugin模块中：

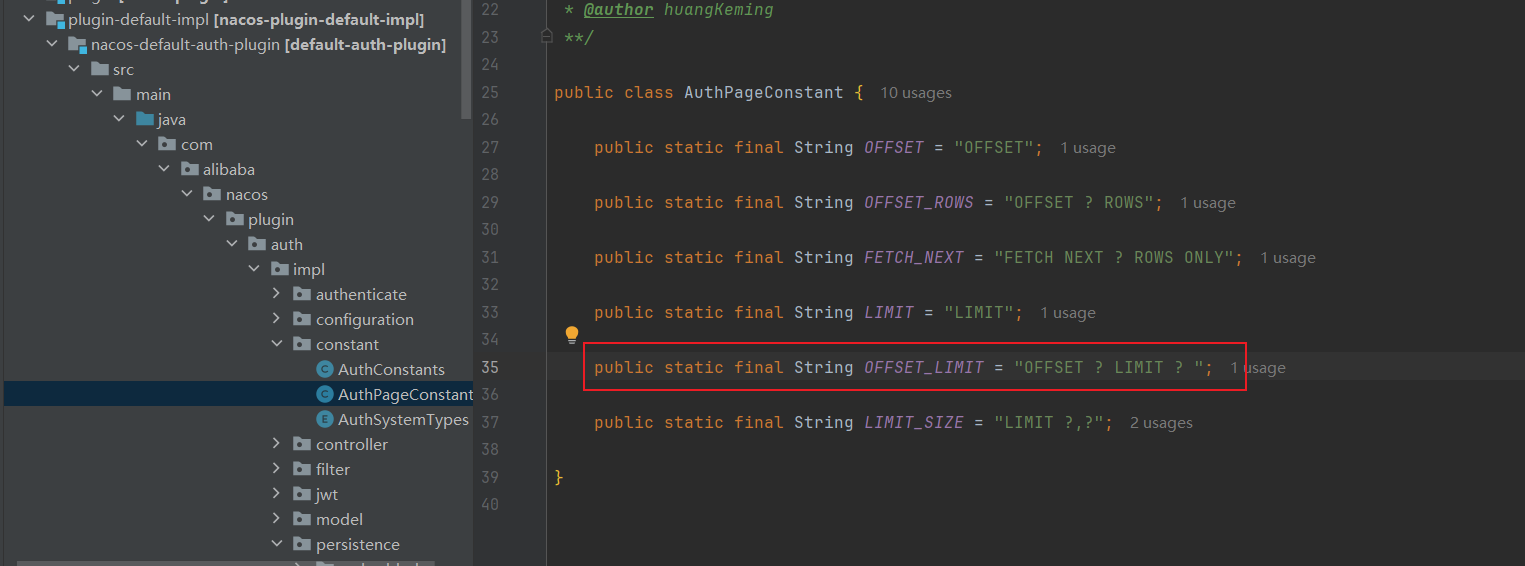

扩展AuthPageConstant分页常量

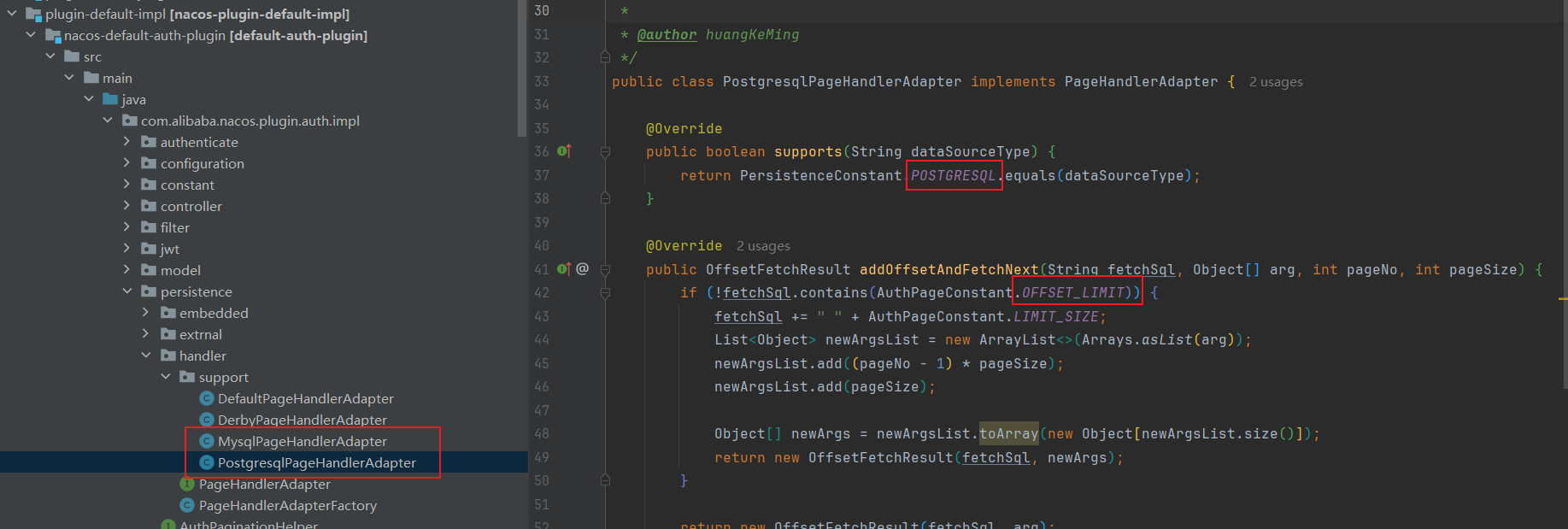

新增PostgresqlPageHandlerAdapter（基于MySQL适配器改造）

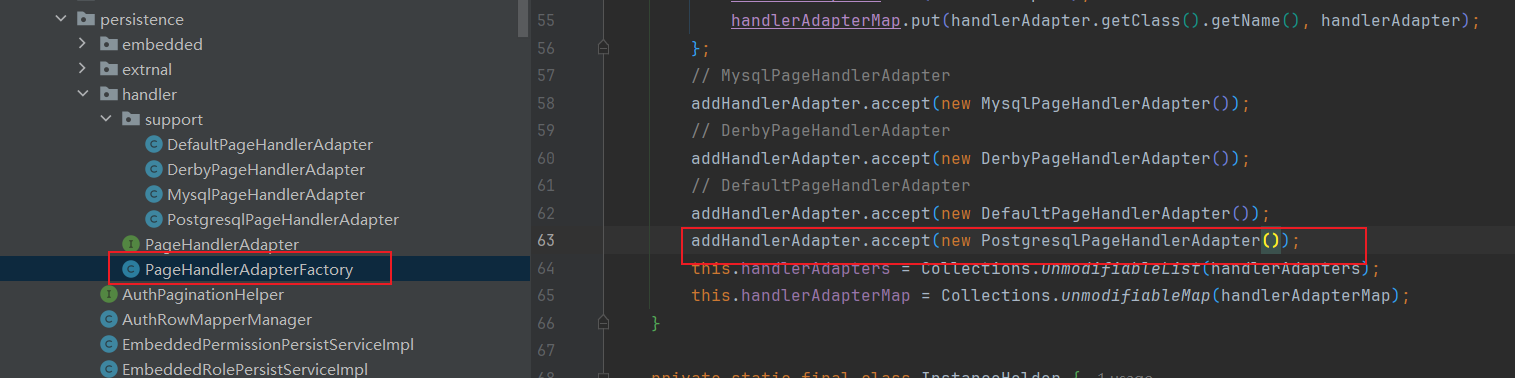

在PageHandlerAdapterFactory中注册PostgreSQL处理器

5.打包

mvn clean -Prelease-nacos install -U -DskipTests -Drat.skip=true

打包成功后在distribution下可以找到打包好的文件

配置application.properties：

替换为实际的PostgreSQL连接信息
特别注意schema名称配置

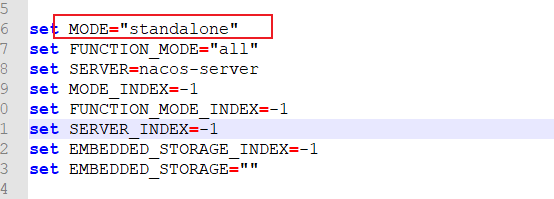

调整start.cmd启动脚本参数

spring.datasource.platform=postgresql
db.num=1
db.url.0=jdbc:postgresql://localhost:54321/mydb?currentSchema=public&reWriteBatchedInserts=true&useUnicode=true&characterEncoding=utf8&serverTimezone=Asia/Shanghai
db.user.0=user
db.password.0=password
db.pool.config.driverClassName=org.postgresql.Driver

最后附赠PG建表语句，祝大家都成功！！！

-- 创建 config_info 表
CREATE TABLE config_info (
    id BIGSERIAL PRIMARY KEY,
    data_id VARCHAR(255) NOT NULL,
    group_id VARCHAR(128),
    content TEXT NOT NULL,
    md5 VARCHAR(32),
    gmt_create TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    src_user TEXT,
    src_ip VARCHAR(50),
    app_name VARCHAR(128),
    tenant_id VARCHAR(128) DEFAULT '',
    c_desc VARCHAR(256),
    c_use VARCHAR(64),
    effect VARCHAR(64),
    type VARCHAR(64),
    c_schema TEXT,
    encrypted_data_key VARCHAR(1024) NOT NULL DEFAULT ''
);
-- 添加唯一约束
ALTER TABLE config_info ADD CONSTRAINT uk_configinfo_datagrouptenant
UNIQUE (data_id, group_id, tenant_id);
-- 添加表注释
COMMENT ON TABLE config_info IS '配置信息表';
-- 添加列注释
COMMENT ON COLUMN config_info.id IS 'id';
COMMENT ON COLUMN config_info.data_id IS 'data_id';
COMMENT ON COLUMN config_info.group_id IS 'group_id';
COMMENT ON COLUMN config_info.content IS 'content';
COMMENT ON COLUMN config_info.md5 IS 'md5';
COMMENT ON COLUMN config_info.gmt_create IS '创建时间';
COMMENT ON COLUMN config_info.gmt_modified IS '修改时间';
COMMENT ON COLUMN config_info.src_user IS 'source user';
COMMENT ON COLUMN config_info.src_ip IS 'source ip';
COMMENT ON COLUMN config_info.app_name IS 'app_name';
COMMENT ON COLUMN config_info.tenant_id IS '租户字段';
COMMENT ON COLUMN config_info.c_desc IS 'configuration description';
COMMENT ON COLUMN config_info.c_use IS 'configuration usage';
COMMENT ON COLUMN config_info.effect IS '配置生效的描述';
COMMENT ON COLUMN config_info.type IS '配置的类型';
COMMENT ON COLUMN config_info.c_schema IS '配置的模式';
COMMENT ON COLUMN config_info.encrypted_data_key IS '密钥';
-- 创建 config_info_gray 表
CREATE TABLE config_info_gray (
    id BIGSERIAL PRIMARY KEY,
    data_id VARCHAR(255) NOT NULL,
    group_id VARCHAR(128) NOT NULL,
    content TEXT NOT NULL,
    md5 VARCHAR(32),
    src_user TEXT,
    src_ip VARCHAR(100),
    gmt_create TIMESTAMP(3) NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified TIMESTAMP(3) NOT NULL DEFAULT CURRENT_TIMESTAMP,
    app_name VARCHAR(128),
    tenant_id VARCHAR(128) DEFAULT '',
    gray_name VARCHAR(128) NOT NULL,
    gray_rule TEXT NOT NULL,
    encrypted_data_key VARCHAR(256) NOT NULL DEFAULT ''
);
-- 添加唯一约束
ALTER TABLE config_info_gray ADD CONSTRAINT uk_configinfogray_datagrouptenantgray
UNIQUE (data_id, group_id, tenant_id, gray_name);
-- 添加索引
CREATE INDEX idx_dataid_gmt_modified ON config_info_gray (data_id, gmt_modified);
CREATE INDEX idx_gmt_modified ON config_info_gray (gmt_modified);
-- 添加表注释
COMMENT ON TABLE config_info_gray IS 'config_info_gray';
-- 添加列注释
COMMENT ON COLUMN config_info_gray.id IS 'id';
COMMENT ON COLUMN config_info_gray.data_id IS 'data_id';
COMMENT ON COLUMN config_info_gray.group_id IS 'group_id';
COMMENT ON COLUMN config_info_gray.content IS 'content';
COMMENT ON COLUMN config_info_gray.md5 IS 'md5';
COMMENT ON COLUMN config_info_gray.src_user IS 'src_user';
COMMENT ON COLUMN config_info_gray.src_ip IS 'src_ip';
COMMENT ON COLUMN config_info_gray.gmt_create IS 'gmt_create';
COMMENT ON COLUMN config_info_gray.gmt_modified IS 'gmt_modified';
COMMENT ON COLUMN config_info_gray.app_name IS 'app_name';
COMMENT ON COLUMN config_info_gray.tenant_id IS 'tenant_id';
COMMENT ON COLUMN config_info_gray.gray_name IS 'gray_name';
COMMENT ON COLUMN config_info_gray.gray_rule IS 'gray_rule';
COMMENT ON COLUMN config_info_gray.encrypted_data_key IS 'encrypted_data_key';
CREATE TABLE config_info_beta (
    id BIGSERIAL PRIMARY KEY,
    data_id VARCHAR(255) NOT NULL,
    group_id VARCHAR(128) NOT NULL,
    app_name VARCHAR(128) DEFAULT NULL,
    content TEXT NOT NULL,
    beta_ips VARCHAR(1024) DEFAULT NULL,
    md5 VARCHAR(32) DEFAULT NULL,
    gmt_create TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    src_user TEXT,
    src_ip VARCHAR(50) DEFAULT NULL,
    tenant_id VARCHAR(128) DEFAULT '',
    encrypted_data_key VARCHAR(1024) NOT NULL DEFAULT ''
);
-- 添加唯一约束
ALTER TABLE config_info_beta ADD CONSTRAINT uk_configinfobeta_datagrouptenant
UNIQUE (data_id, group_id, tenant_id);
-- 添加表注释
COMMENT ON TABLE config_info_beta IS 'config_info_beta';
-- 添加列注释
COMMENT ON COLUMN config_info_beta.id IS 'id';
COMMENT ON COLUMN config_info_beta.data_id IS 'data_id';
COMMENT ON COLUMN config_info_beta.group_id IS 'group_id';
COMMENT ON COLUMN config_info_beta.app_name IS 'app_name';
COMMENT ON COLUMN config_info_beta.content IS 'content';
COMMENT ON COLUMN config_info_beta.beta_ips IS 'betaIps';
COMMENT ON COLUMN config_info_beta.md5 IS 'md5';
COMMENT ON COLUMN config_info_beta.gmt_create IS '创建时间';
COMMENT ON COLUMN config_info_beta.gmt_modified IS '修改时间';
COMMENT ON COLUMN config_info_beta.src_user IS 'source user';
COMMENT ON COLUMN config_info_beta.src_ip IS 'source ip';
COMMENT ON COLUMN config_info_beta.tenant_id IS '租户字段';
COMMENT ON COLUMN config_info_beta.encrypted_data_key IS '密钥';
-- 创建表结构
CREATE TABLE config_info_tag (
    id BIGSERIAL PRIMARY KEY,
    data_id VARCHAR(255) NOT NULL,
    group_id VARCHAR(128) NOT NULL,
    tenant_id VARCHAR(128) DEFAULT '',
    tag_id VARCHAR(128) NOT NULL,
    app_name VARCHAR(128),
    content TEXT NOT NULL,
    md5 VARCHAR(32),
    gmt_create TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    src_user TEXT,
    src_ip VARCHAR(50)
);
-- 添加唯一约束
ALTER TABLE config_info_tag ADD CONSTRAINT uk_configinfotag_datagrouptenanttag
UNIQUE (data_id, group_id, tenant_id, tag_id);
-- 表注释
COMMENT ON TABLE config_info_tag IS 'config_info_tag';
-- 列注释
COMMENT ON COLUMN config_info_tag.id IS 'id';
COMMENT ON COLUMN config_info_tag.data_id IS 'data_id';
COMMENT ON COLUMN config_info_tag.group_id IS 'group_id';
COMMENT ON COLUMN config_info_tag.tenant_id IS 'tenant_id';
COMMENT ON COLUMN config_info_tag.tag_id IS 'tag_id';
COMMENT ON COLUMN config_info_tag.app_name IS 'app_name';
COMMENT ON COLUMN config_info_tag.content IS 'content';
COMMENT ON COLUMN config_info_tag.md5 IS 'md5';
COMMENT ON COLUMN config_info_tag.gmt_create IS '创建时间';
COMMENT ON COLUMN config_info_tag.gmt_modified IS '修改时间';
COMMENT ON COLUMN config_info_tag.src_user IS 'source user';
COMMENT ON COLUMN config_info_tag.src_ip IS 'source ip';
-- 创建表结构
CREATE TABLE config_tags_relation (
    id BIGINT NOT NULL,
    tag_name VARCHAR(128) NOT NULL,
    tag_type VARCHAR(64),
    data_id VARCHAR(255) NOT NULL,
    group_id VARCHAR(128) NOT NULL,
    tenant_id VARCHAR(128) DEFAULT '',
    nid BIGSERIAL
);
-- 设置主键
ALTER TABLE config_tags_relation ADD PRIMARY KEY (nid);
-- 添加唯一约束
ALTER TABLE config_tags_relation ADD CONSTRAINT uk_configtagrelation_configidtag
UNIQUE (id, tag_name, tag_type);
-- 添加索引
CREATE INDEX idx_tenant_id ON config_tags_relation (tenant_id);
-- 表注释
COMMENT ON TABLE config_tags_relation IS 'config_tag_relation';
-- 列注释
COMMENT ON COLUMN config_tags_relation.id IS 'id';
COMMENT ON COLUMN config_tags_relation.tag_name IS 'tag_name';
COMMENT ON COLUMN config_tags_relation.tag_type IS 'tag_type';
COMMENT ON COLUMN config_tags_relation.data_id IS 'data_id';
COMMENT ON COLUMN config_tags_relation.group_id IS 'group_id';
COMMENT ON COLUMN config_tags_relation.tenant_id IS 'tenant_id';
COMMENT ON COLUMN config_tags_relation.nid IS 'nid, 自增长标识';
-- 创建表结构
CREATE TABLE group_capacity (
    id BIGSERIAL PRIMARY KEY,
    group_id VARCHAR(128) NOT NULL DEFAULT '',
    quota INTEGER NOT NULL DEFAULT 0,
    usage INTEGER NOT NULL DEFAULT 0,
    max_size INTEGER NOT NULL DEFAULT 0,
    max_aggr_count INTEGER NOT NULL DEFAULT 0,
    max_aggr_size INTEGER NOT NULL DEFAULT 0,
    max_history_count INTEGER NOT NULL DEFAULT 0,
    gmt_create TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP
);
-- 添加唯一约束
ALTER TABLE group_capacity ADD CONSTRAINT uk_group_id UNIQUE (group_id);
-- 表注释
COMMENT ON TABLE group_capacity IS '集群、各Group容量信息表';
-- 列注释
COMMENT ON COLUMN group_capacity.id IS '主键ID';
COMMENT ON COLUMN group_capacity.group_id IS 'Group ID，空字符表示整个集群';
COMMENT ON COLUMN group_capacity.quota IS '配额，0表示使用默认值';
COMMENT ON COLUMN group_capacity.usage IS '使用量';
COMMENT ON COLUMN group_capacity.max_size IS '单个配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN group_capacity.max_aggr_count IS '聚合子配置最大个数，0表示使用默认值';
COMMENT ON COLUMN group_capacity.max_aggr_size IS '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN group_capacity.max_history_count IS '最大变更历史数量';
COMMENT ON COLUMN group_capacity.gmt_create IS '创建时间';
COMMENT ON COLUMN group_capacity.gmt_modified IS '修改时间';
-- 创建表结构
CREATE TABLE his_config_info (
    id BIGINT NOT NULL,
    nid BIGSERIAL,
    data_id VARCHAR(255) NOT NULL,
    group_id VARCHAR(128) NOT NULL,
    app_name VARCHAR(128),
    content TEXT NOT NULL,
    md5 VARCHAR(32),
    gmt_create TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    src_user TEXT,
    src_ip VARCHAR(50),
    op_type CHAR(10),
    tenant_id VARCHAR(128) DEFAULT '',
    encrypted_data_key VARCHAR(1024) NOT NULL DEFAULT '',
    publish_type VARCHAR(50) DEFAULT 'formal',
    gray_name VARCHAR(50),
    ext_info TEXT
);
-- 设置主键
ALTER TABLE his_config_info ADD PRIMARY KEY (nid);
-- 创建索引
CREATE INDEX idx_gmt_create ON his_config_info (gmt_create);
CREATE INDEX his_config_info_idx_gmt_modified ON his_config_info (gmt_modified);
CREATE INDEX idx_did ON his_config_info (data_id);
-- 表注释
COMMENT ON TABLE his_config_info IS '多租户改造';
-- 列注释
COMMENT ON COLUMN his_config_info.id IS 'id';
COMMENT ON COLUMN his_config_info.nid IS 'nid, 自增标识';
COMMENT ON COLUMN his_config_info.data_id IS 'data_id';
COMMENT ON COLUMN his_config_info.group_id IS 'group_id';
COMMENT ON COLUMN his_config_info.app_name IS 'app_name';
COMMENT ON COLUMN his_config_info.content IS 'content';
COMMENT ON COLUMN his_config_info.md5 IS 'md5';
COMMENT ON COLUMN his_config_info.gmt_create IS '创建时间';
COMMENT ON COLUMN his_config_info.gmt_modified IS '修改时间';
COMMENT ON COLUMN his_config_info.src_user IS 'source user';
COMMENT ON COLUMN his_config_info.src_ip IS 'source ip';
COMMENT ON COLUMN his_config_info.op_type IS 'operation type';
COMMENT ON COLUMN his_config_info.tenant_id IS '租户字段';
COMMENT ON COLUMN his_config_info.encrypted_data_key IS '密钥';
COMMENT ON COLUMN his_config_info.publish_type IS 'publish type gray or formal';
COMMENT ON COLUMN his_config_info.gray_name IS 'gray name';
COMMENT ON COLUMN his_config_info.ext_info IS 'ext info';
-- 创建表结构
CREATE TABLE tenant_capacity (
    id BIGSERIAL PRIMARY KEY,
    tenant_id VARCHAR(128) NOT NULL DEFAULT '',
    quota INTEGER NOT NULL DEFAULT 0,
    usage INTEGER NOT NULL DEFAULT 0,
    max_size INTEGER NOT NULL DEFAULT 0,
    max_aggr_count INTEGER NOT NULL DEFAULT 0,
    max_aggr_size INTEGER NOT NULL DEFAULT 0,
    max_history_count INTEGER NOT NULL DEFAULT 0,
    gmt_create TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP
);
-- 添加唯一约束
ALTER TABLE tenant_capacity ADD CONSTRAINT uk_tenant_id UNIQUE (tenant_id);
-- 表注释
COMMENT ON TABLE tenant_capacity IS '租户容量信息表';
-- 列注释
COMMENT ON COLUMN tenant_capacity.id IS '主键ID';
COMMENT ON COLUMN tenant_capacity.tenant_id IS 'Tenant ID';
COMMENT ON COLUMN tenant_capacity.quota IS '配额，0表示使用默认值';
COMMENT ON COLUMN tenant_capacity.usage IS '使用量';
COMMENT ON COLUMN tenant_capacity.max_size IS '单个配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN tenant_capacity.max_aggr_count IS '聚合子配置最大个数';
COMMENT ON COLUMN tenant_capacity.max_aggr_size IS '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN tenant_capacity.max_history_count IS '最大变更历史数量';
COMMENT ON COLUMN tenant_capacity.gmt_create IS '创建时间';
COMMENT ON COLUMN tenant_capacity.gmt_modified IS '修改时间';
-- 创建表结构
CREATE TABLE tenant_info (
    id BIGSERIAL PRIMARY KEY,
    kp VARCHAR(128) NOT NULL,
    tenant_id VARCHAR(128) DEFAULT '',
    tenant_name VARCHAR(128) DEFAULT '',
    tenant_desc VARCHAR(256),
    create_source VARCHAR(32),
    gmt_create BIGINT NOT NULL,
    gmt_modified BIGINT NOT NULL
);
-- 添加唯一约束
ALTER TABLE tenant_info ADD CONSTRAINT uk_tenant_info_kptenantid UNIQUE (kp, tenant_id);
-- 添加索引
CREATE INDEX tenant_info_idx_tenant_id ON tenant_info (tenant_id);
-- 表注释
COMMENT ON TABLE tenant_info IS 'tenant_info';
-- 列注释
COMMENT ON COLUMN tenant_info.id IS 'id';
COMMENT ON COLUMN tenant_info.kp IS 'kp';
COMMENT ON COLUMN tenant_info.tenant_id IS 'tenant_id';
COMMENT ON COLUMN tenant_info.tenant_name IS 'tenant_name';
COMMENT ON COLUMN tenant_info.tenant_desc IS 'tenant_desc';
COMMENT ON COLUMN tenant_info.create_source IS 'create_source';
COMMENT ON COLUMN tenant_info.gmt_create IS '创建时间';
COMMENT ON COLUMN tenant_info.gmt_modified IS '修改时间';
-- 创建表结构
CREATE TABLE users (
    username VARCHAR(50) NOT NULL,
    password VARCHAR(500) NOT NULL,
    enabled BOOLEAN NOT NULL,
    PRIMARY KEY (username)
);
-- 添加注释
COMMENT ON TABLE users IS '用户表';
COMMENT ON COLUMN users.username IS 'username';
COMMENT ON COLUMN users.password IS 'password';
COMMENT ON COLUMN users.enabled IS 'enabled';
-- 创建表结构
CREATE TABLE roles (
    username VARCHAR(50) NOT NULL,
    role VARCHAR(50) NOT NULL
);
-- 添加唯一索引
CREATE UNIQUE INDEX idx_user_role ON roles (username, role);
-- 添加列注释
COMMENT ON COLUMN roles.username IS 'username';
COMMENT ON COLUMN roles.role IS 'role';
-- 创建表结构
CREATE TABLE permissions (
    role VARCHAR(50) NOT NULL,
    resource VARCHAR(128) NOT NULL,
    action VARCHAR(8) NOT NULL
);
-- 添加唯一约束
ALTER TABLE permissions ADD CONSTRAINT uk_role_permission UNIQUE (role, resource, action);
-- 添加列注释
COMMENT ON COLUMN permissions.role IS 'role';
COMMENT ON COLUMN permissions.resource IS 'resource';
COMMENT ON COLUMN permissions.action IS 'action';

免责声明：我们致力于保护作者版权，注重分享，被刊用文章因无法核实真实出处，未能及时与作者取得联系，或有版权异议的，请联系管理员，我们会立即处理! 部分文章是来自自研大数据AI进行生成,内容摘自(百度百科,百度知道,头条百科,中国民法典,刑法,牛津词典,新华词典,汉语词典,国家院校,科普平台)等数据,内容仅供学习参考,不准确地方联系删除处理! 图片声明：本站部分配图来自人工智能系统AI生成,觅知网授权图片,PxHere摄影无版权图库和百度，360，搜狗等多加搜索引擎自动关键词搜索配图，如有侵权的图片，请第一时间联系我们。

一	二	三	四	五	六	日
				1	2	3
4	5	6	7	8	9	10
11	12	13	14	15	16	17
18	19	20	21	22	23	24
25	26	27	28	29	30	31

Nacos 2.5.0 深度适配PostgreSQL全流程

相关阅读

Linux Shell异常处理，常见问题与解决方案？Shell脚本报错怎么解决？Shell脚本报错如何快速解决？

Linux中高效复制多级目录与文件的技巧与方法？如何快速复制Linux多级目录？Linux多级目录如何快速复制？

IDA Pro监听Linux进程，逆向工程中的动态调试技术？IDA如何动态调试Linux进程？IDA如何逆向调试Linux进程？

Linux下按pip安装与管理Python包指南？Linux如何用pip管理Python包？Linux下pip怎么管理Python包？

目录[+]
