tomcat/undertow替换为宝兰德

1、下载BES

这里给一个链接，吐槽一下，官方的下载地址是真难找

Spring Boot使用BESApplicationServer宝兰德替换内嵌Tomcat - 皮军旗 - 博客园

2、maven安装

mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-actuator-spring-boot-2.x-starter -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-actuator-spring-boot-2.x-starter-9.5.5.002.jar
mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-gmssl -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-gmssl-9.5.5.002.jar
mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-jasper -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-jasper-9.5.5.002.jar
mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-jdbcra -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-jdbcra-9.5.5.002.jar
mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-jdbcra-spring-boot-starter -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-jdbcra-spring-boot-starter-9.5.5.002.jar
mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-lite-spring-boot-2.x-starter -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-lite-spring-boot-2.x-starter-9.5.5.002.jar
mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-webapp-compressor -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-webapp-compressor-9.5.5.002.jar
mvn install:install-file -DgroupId=com.bes.appserv-web -DartifactId=bes-websocket -Dversion=9.5.5.002 -Dpackaging=jar -Dfile=BES-AppServer-SpringBoot-2.x-9.5.5.002/bes-websocket-9.5.5.002.jar

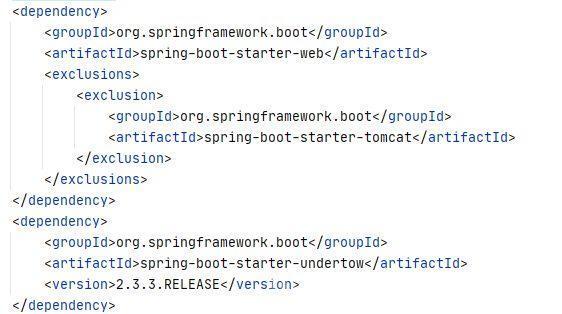

3、pom文件修改

（1）排除tomcat/undertow

  org.springframework.boot
  spring-boot-starter-undertow/tomcat

(2) 引入bes

  com.bes.appserv-web
  bes-lite-spring-boot-2.x-starter
  9.5.5.002


  com.bes.appserv-web
  bes-websocket
  9.5.5.002

至此，如果你的项目没有引入spring-websocket将正常启动。反之则可能报错No suitable default RequestUpgradeStrategy found，解决方案继续往下看。

4、重写AbstractHandshakeHandler

(1) 在你的项目目录下新建和spring同名包

包名：org.springframework.web.socket.server.support

（2）新建类AbstractHandshakeHandler

/*
 * Copyright 2002-2022 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.springframework.web.socket.server.support;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.context.Lifecycle;
import org.springframework.core.log.LogFormatUtils;
import org.springframework.http.HttpMethod;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.ServerHttpRequest;
import org.springframework.http.server.ServerHttpResponse;
import org.springframework.lang.Nullable;
import org.springframework.util.Assert;
import org.springframework.util.ClassUtils;
import org.springframework.util.ReflectionUtils;
import org.springframework.util.StringUtils;
import org.springframework.web.socket.SubProtocolCapable;
import org.springframework.web.socket.WebSocketExtension;
import org.springframework.web.socket.WebSocketHandler;
import org.springframework.web.socket.WebSocketHttpHeaders;
import org.springframework.web.socket.handler.WebSocketHandlerDecorator;
import org.springframework.web.socket.server.HandshakeFailureException;
import org.springframework.web.socket.server.HandshakeHandler;
import org.springframework.web.socket.server.RequestUpgradeStrategy;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.security.Principal;
import java.util.*;
/**
 * A base class for {@link HandshakeHandler} implementations, independent of the Servlet API.
 *
 *
Performs initial validation of the WebSocket handshake request - possibly rejecting it
 * through the appropriate HTTP status code - while also allowing its subclasses to override
 * various parts of the negotiation process (e.g. origin validation, sub-protocol negotiation,
 * extensions negotiation, etc).
 *
 *
If the negotiation succeeds, the actual upgrade is delegated to a server-specific
 * {@link RequestUpgradeStrategy}, which will update
 * the response as necessary and initialize the WebSocket. Currently, supported servers are
 * Jetty 9.0-9.3, Tomcat 7.0.47+ and 8.x, Undertow 1.0-1.3, GlassFish 4.1+, WebLogic 12.1.3+.
 *
 * @author Rossen Stoyanchev
 * @author Juergen Hoeller
 * @since 4.2
 * @see org.springframework.web.socket.server.jetty.JettyRequestUpgradeStrategy
 * @see org.springframework.web.socket.server.standard.TomcatRequestUpgradeStrategy
 * @see org.springframework.web.socket.server.standard.UndertowRequestUpgradeStrategy
 * @see org.springframework.web.socket.server.standard.GlassFishRequestUpgradeStrategy
 * @see org.springframework.web.socket.server.standard.WebLogicRequestUpgradeStrategy
 */
public abstract class AbstractHandshakeHandler implements HandshakeHandler, Lifecycle {
    private static final boolean tomcatWsPresent;
    private static final boolean jettyWsPresent;
    private static final boolean jetty10WsPresent;
    private static final boolean undertowWsPresent;
    private static final boolean glassfishWsPresent;
    private static final boolean weblogicWsPresent;
    private static final boolean websphereWsPresent;
    private static final boolean besWsPresent;
    static {
        ClassLoader classLoader = AbstractHandshakeHandler.class.getClassLoader();
        tomcatWsPresent = ClassUtils.isPresent(
                "org.apache.tomcat.websocket.server.WsHttpUpgradeHandler", classLoader);
        jetty10WsPresent = ClassUtils.isPresent(
                "org.eclipse.jetty.websocket.server.JettyWebSocketServerContainer", classLoader);
        jettyWsPresent = ClassUtils.isPresent(
                "org.eclipse.jetty.websocket.server.WebSocketServerFactory", classLoader);
        undertowWsPresent = ClassUtils.isPresent(
                "io.undertow.websockets.jsr.ServerWebSocketContainer", classLoader);
        glassfishWsPresent = ClassUtils.isPresent(
                "org.glassfish.tyrus.servlet.TyrusHttpUpgradeHandler", classLoader);
        weblogicWsPresent = ClassUtils.isPresent(
                "weblogic.websocket.tyrus.TyrusServletWriter", classLoader);
        websphereWsPresent = ClassUtils.isPresent(
                "com.ibm.websphere.wsoc.WsWsocServerContainer", classLoader);
        besWsPresent = ClassUtils.isPresent(
                "com.bes.enterprise.web.websocket.server.WsHttpUpgradeHandler", classLoader);
    }
    protected final Log logger = LogFactory.getLog(getClass());
    private final RequestUpgradeStrategy requestUpgradeStrategy;
    private final List supportedProtocols = new ArrayList();
    private volatile boolean running;
    /**
     * Default constructor that auto-detects and instantiates a
     * {@link RequestUpgradeStrategy} suitable for the runtime container.
     * @throws IllegalStateException if no {@link RequestUpgradeStrategy} can be found.
     */
    protected AbstractHandshakeHandler() {
        this(initRequestUpgradeStrategy());
    }
    /**
     * A constructor that accepts a runtime-specific {@link RequestUpgradeStrategy}.
     * @param requestUpgradeStrategy the upgrade strategy to use
     */
    protected AbstractHandshakeHandler(RequestUpgradeStrategy requestUpgradeStrategy) {
        Assert.notNull(requestUpgradeStrategy, "RequestUpgradeStrategy must not be null");
        this.requestUpgradeStrategy = requestUpgradeStrategy;
    }
    private static RequestUpgradeStrategy initRequestUpgradeStrategy() {
        String className;
        if (tomcatWsPresent) {
            className = "org.springframework.web.socket.server.standard.TomcatRequestUpgradeStrategy";
        }
        else if (jettyWsPresent) {
            className = "org.springframework.web.socket.server.jetty.JettyRequestUpgradeStrategy";
        }
        else if (jetty10WsPresent) {
            className = "org.springframework.web.socket.server.jetty.Jetty10RequestUpgradeStrategy";
        }
        else if (undertowWsPresent) {
            className = "org.springframework.web.socket.server.standard.UndertowRequestUpgradeStrategy";
        }
        else if (glassfishWsPresent) {
            className = "org.springframework.web.socket.server.standard.GlassFishRequestUpgradeStrategy";
        }
        else if (weblogicWsPresent) {
            className = "org.springframework.web.socket.server.standard.WebLogicRequestUpgradeStrategy";
        }
        else if (websphereWsPresent) {
            className = "org.springframework.web.socket.server.standard.WebSphereRequestUpgradeStrategy";
        }
        else if (besWsPresent) {
            className = "org.springframework.web.socket.server.standard.BesRequestUpgradeStrategy";
        }
        else {
            throw new IllegalStateException("No suitable default RequestUpgradeStrategy found");
        }
        try {
            Class clazz = ClassUtils.forName(className, AbstractHandshakeHandler.class.getClassLoader());
            return (RequestUpgradeStrategy) ReflectionUtils.accessibleConstructor(clazz).newInstance();
        }
        catch (Exception ex) {
            throw new IllegalStateException(
                    "Failed to instantiate RequestUpgradeStrategy: " + className, ex);
        }
    }
    /**
     * Return the {@link RequestUpgradeStrategy} for WebSocket requests.
     */
    public RequestUpgradeStrategy getRequestUpgradeStrategy() {
        return this.requestUpgradeStrategy;
    }
    /**
     * Use this property to configure the list of supported sub-protocols.
     * The first configured sub-protocol that matches a client-requested sub-protocol
     * is accepted. If there are no matches the response will not contain a
     * {@literal Sec-WebSocket-Protocol} header.
     *
Note that if the WebSocketHandler passed in at runtime is an instance of
     * {@link SubProtocolCapable} then there is no need to explicitly configure
     * this property. That is certainly the case with the built-in STOMP over
     * WebSocket support. Therefore, this property should be configured explicitly
     * only if the WebSocketHandler does not implement {@code SubProtocolCapable}.
     */
    public void setSupportedProtocols(String... protocols) {
        this.supportedProtocols.clear();
        for (String protocol : protocols) {
            this.supportedProtocols.add(protocol.toLowerCase());
        }
    }
    /**
     * Return the list of supported sub-protocols.
     */
    public String[] getSupportedProtocols() {
        return StringUtils.toStringArray(this.supportedProtocols);
    }
    @Override
    public void start() {
        if (!isRunning()) {
            this.running = true;
            doStart();
        }
    }
    protected void doStart() {
        if (this.requestUpgradeStrategy instanceof Lifecycle) {
            ((Lifecycle) this.requestUpgradeStrategy).start();
        }
    }
    @Override
    public void stop() {
        if (isRunning()) {
            this.running = false;
            doStop();
        }
    }
    protected void doStop() {
        if (this.requestUpgradeStrategy instanceof Lifecycle) {
            ((Lifecycle) this.requestUpgradeStrategy).stop();
        }
    }
    @Override
    public boolean isRunning() {
        return this.running;
    }
    @Override
    public final boolean doHandshake(ServerHttpRequest request, ServerHttpResponse response,
                                     WebSocketHandler wsHandler, Map attributes) throws HandshakeFailureException {
        WebSocketHttpHeaders headers = new WebSocketHttpHeaders(request.getHeaders());
        if (logger.isTraceEnabled()) {
            logger.trace("Processing request " + request.getURI() + " with headers=" + headers);
        }
        try {
            if (HttpMethod.GET != request.getMethod()) {
                response.setStatusCode(HttpStatus.METHOD_NOT_ALLOWED);
                response.getHeaders().setAllow(Collections.singleton(HttpMethod.GET));
                if (logger.isErrorEnabled()) {
                    logger.error("Handshake failed due to unexpected HTTP method: " + request.getMethod());
                }
                return false;
            }
            if (!"WebSocket".equalsIgnoreCase(headers.getUpgrade())) {
                handleInvalidUpgradeHeader(request, response);
                return false;
            }
            if (!headers.getConnection().contains("Upgrade") && !headers.getConnection().contains("upgrade")) {
                handleInvalidConnectHeader(request, response);
                return false;
            }
            if (!isWebSocketVersionSupported(headers)) {
                handleWebSocketVersionNotSupported(request, response);
                return false;
            }
            if (!isValidOrigin(request)) {
                response.setStatusCode(HttpStatus.FORBIDDEN);
                return false;
            }
            String wsKey = headers.getSecWebSocketKey();
            if (wsKey == null) {
                if (logger.isErrorEnabled()) {
                    logger.error("Missing \"Sec-WebSocket-Key\" header");
                }
                response.setStatusCode(HttpStatus.BAD_REQUEST);
                return false;
            }
        }
        catch (IOException ex) {
            throw new HandshakeFailureException(
                    "Response update failed during upgrade to WebSocket: " + request.getURI(), ex);
        }
        String subProtocol = selectProtocol(headers.getSecWebSocketProtocol(), wsHandler);
        List requested = headers.getSecWebSocketExtensions();
        List supported = this.requestUpgradeStrategy.getSupportedExtensions(request);
        List extensions = filterRequestedExtensions(request, requested, supported);
        Principal user = determineUser(request, wsHandler, attributes);
        if (logger.isTraceEnabled()) {
            logger.trace("Upgrading to WebSocket, subProtocol=" + subProtocol + ", extensions=" + extensions);
        }
        this.requestUpgradeStrategy.upgrade(request, response, subProtocol, extensions, user, wsHandler, attributes);
        return true;
    }
    protected void handleInvalidUpgradeHeader(ServerHttpRequest request, ServerHttpResponse response) throws IOException {
        if (logger.isErrorEnabled()) {
            logger.error(LogFormatUtils.formatValue(
                    "Handshake failed due to invalid Upgrade header: " + request.getHeaders().getUpgrade(), -1, true));
        }
        response.setStatusCode(HttpStatus.BAD_REQUEST);
        response.getBody().write("Can \"Upgrade\" only to \"WebSocket\".".getBytes(StandardCharsets.UTF_8));
    }
    protected void handleInvalidConnectHeader(ServerHttpRequest request, ServerHttpResponse response) throws IOException {
        if (logger.isErrorEnabled()) {
            logger.error(LogFormatUtils.formatValue(
                    "Handshake failed due to invalid Connection header" + request.getHeaders().getConnection(), -1, true));
        }
        response.setStatusCode(HttpStatus.BAD_REQUEST);
        response.getBody().write("\"Connection\" must be \"upgrade\".".getBytes(StandardCharsets.UTF_8));
    }
    protected boolean isWebSocketVersionSupported(WebSocketHttpHeaders httpHeaders) {
        String version = httpHeaders.getSecWebSocketVersion();
        String[] supportedVersions = getSupportedVersions();
        for (String supportedVersion : supportedVersions) {
            if (supportedVersion.trim().equals(version)) {
                return true;
            }
        }
        return false;
    }
    protected String[] getSupportedVersions() {
        return this.requestUpgradeStrategy.getSupportedVersions();
    }
    protected void handleWebSocketVersionNotSupported(ServerHttpRequest request, ServerHttpResponse response) {
        if (logger.isErrorEnabled()) {
            String version = request.getHeaders().getFirst("Sec-WebSocket-Version");
            logger.error(LogFormatUtils.formatValue(
                    "Handshake failed due to unsupported WebSocket version: " + version +
                            ". Supported versions: " + Arrays.toString(getSupportedVersions()), -1, true));
        }
        response.setStatusCode(HttpStatus.UPGRADE_REQUIRED);
        response.getHeaders().set(WebSocketHttpHeaders.SEC_WEBSOCKET_VERSION,
                StringUtils.arrayToCommaDelimitedString(getSupportedVersions()));
    }
    /**
     * Return whether the request {@code Origin} header value is valid or not.
     * By default, all origins as considered as valid. Consider using an
     * {@link OriginHandshakeInterceptor} for filtering origins if needed.
     */
    protected boolean isValidOrigin(ServerHttpRequest request) {
        return true;
    }
    /**
     * Perform the sub-protocol negotiation based on requested and supported sub-protocols.
     * For the list of supported sub-protocols, this method first checks if the target
     * WebSocketHandler is a {@link SubProtocolCapable} and then also checks if any
     * sub-protocols have been explicitly configured with
     * {@link #setSupportedProtocols(String...)}.
     * @param requestedProtocols the requested sub-protocols
     * @param webSocketHandler the WebSocketHandler that will be used
     * @return the selected protocols or {@code null}
     * @see #determineHandlerSupportedProtocols(WebSocketHandler)
     */
    @Nullable
    protected String selectProtocol(List requestedProtocols, WebSocketHandler webSocketHandler) {
        List handlerProtocols = determineHandlerSupportedProtocols(webSocketHandler);
        for (String protocol : requestedProtocols) {
            if (handlerProtocols.contains(protocol.toLowerCase())) {
                return protocol;
            }
            if (this.supportedProtocols.contains(protocol.toLowerCase())) {
                return protocol;
            }
        }
        return null;
    }
    /**
     * Determine the sub-protocols supported by the given WebSocketHandler by
     * checking whether it is an instance of {@link SubProtocolCapable}.
     * @param handler the handler to check
     * @return a list of supported protocols, or an empty list if none available
     */
    protected final List determineHandlerSupportedProtocols(WebSocketHandler handler) {
        WebSocketHandler handlerToCheck = WebSocketHandlerDecorator.unwrap(handler);
        List subProtocols = null;
        if (handlerToCheck instanceof SubProtocolCapable) {
            subProtocols = ((SubProtocolCapable) handlerToCheck).getSubProtocols();
        }
        return (subProtocols != null ? subProtocols : Collections.emptyList());
    }
    /**
     * Filter the list of requested WebSocket extensions.
     *
As of 4.1, the default implementation of this method filters the list to
     * leave only extensions that are both requested and supported.
     * @param request the current request
     * @param requestedExtensions the list of extensions requested by the client
     * @param supportedExtensions the list of extensions supported by the server
     * @return the selected extensions or an empty list
     */
    protected List filterRequestedExtensions(ServerHttpRequest request,
                  List requestedExtensions, List supportedExtensions) {
        List result = new ArrayList(requestedExtensions.size());
        for (WebSocketExtension extension : requestedExtensions) {
            if (supportedExtensions.contains(extension)) {
                result.add(extension);
            }
        }
        return result;
    }
    /**
     * A method that can be used to associate a user with the WebSocket session
     * in the process of being established. The default implementation calls
     * {@link ServerHttpRequest#getPrincipal()}
     *
Subclasses can provide custom logic for associating a user with a session,
     * for example for assigning a name to anonymous users (i.e. not fully authenticated).
     * @param request the handshake request
     * @param wsHandler the WebSocket handler that will handle messages
     * @param attributes handshake attributes to pass to the WebSocket session
     * @return the user for the WebSocket session, or {@code null} if not available
     */
    @Nullable
    protected Principal determineUser(
            ServerHttpRequest request, WebSocketHandler wsHandler, Map attributes) {
        return request.getPrincipal();
    }
}

5、自定义socket握手类

（1）在上面新建包的上一层创建包

包名：org.springframework.web.socket.server.standard

（2）新建类BesRequestUpgradeStrategy

/*
 * Copyright 2002-2017 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.springframework.web.socket.server.standard;
import com.bes.enterprise.web.websocket.server.WsServerContainer;
import org.springframework.http.server.ServerHttpRequest;
import org.springframework.http.server.ServerHttpResponse;
import org.springframework.lang.Nullable;
import org.springframework.web.socket.server.HandshakeFailureException;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.websocket.Endpoint;
import javax.websocket.Extension;
import java.io.IOException;
import java.util.Collections;
import java.util.List;
import java.util.Map;
//import org.apache.tomcat.websocket.server.WsServerContainer;
/**
 * A WebSocket {@code RequestUpgradeStrategy} for Apache Tomcat. Compatible with
 * all versions of Tomcat that support JSR-356, i.e. Tomcat 7.0.47+ and higher.
 *
 *
To modify properties of the underlying {@link javax.websocket.server.ServerContainer}
 * you can use {@link ServletServerContainerFactoryBean} in XML configuration or,
 * when using Java configuration, access the container instance through the
 * "javax.websocket.server.ServerContainer" ServletContext attribute.
 *
 * @author Rossen Stoyanchev
 * @since 4.0
 */
public class BesRequestUpgradeStrategy extends AbstractStandardUpgradeStrategy {
    @Override
    public String[] getSupportedVersions() {
        return new String[]{"13"};
    }
    @Override
    public void upgradeInternal(ServerHttpRequest request, ServerHttpResponse response,
                                @Nullable String selectedProtocol, List selectedExtensions, Endpoint endpoint)
            throws HandshakeFailureException {
        HttpServletRequest servletRequest = getHttpServletRequest(request);
        HttpServletResponse servletResponse = getHttpServletResponse(response);
        StringBuffer requestUrl = servletRequest.getRequestURL();
        String path = servletRequest.getRequestURI();  // shouldn't matter
        Map pathParams = Collections.emptyMap();
        ServerEndpointRegistration endpointConfig = new ServerEndpointRegistration(path, endpoint);
        endpointConfig.setSubprotocols(Collections.singletonList(selectedProtocol));
        endpointConfig.setExtensions(selectedExtensions);
        try {
            getContainer(servletRequest).doUpgrade(servletRequest, servletResponse, endpointConfig, pathParams);
        } catch (ServletException ex) {
            throw new HandshakeFailureException(
                    "Servlet request failed to upgrade to WebSocket: " + requestUrl, ex);
        } catch (IOException ex) {
            throw new HandshakeFailureException(
                    "Response update failed during upgrade to WebSocket: " + requestUrl, ex);
        }
    }
    @Override
    public WsServerContainer getContainer(HttpServletRequest request) {
        return (WsServerContainer) super.getContainer(request);
    }
}

大功告成！
