Android studio配置ArcGIS Runtime SDK for Android及地图展示实现

1.在线引入ArcGIS Runtime SDK for Android

打开总目录下的settings.gradle.kts文件，对文件中两处repositories {下添加

maven { url = uri("https://esri.jfrog.io/artifactory/arcgis") }

pluginManagement {
    repositories {
        maven { url = uri("https://maven.aliyun.com/repository/public") }
        maven { url = uri("https://maven.aliyun.com/repository/google") }
        maven { url = uri("https://esri.jfrog.io/artifactory/arcgis") }
        google {
            content {
                includeGroupByRegex("com\\.android.*")
                includeGroupByRegex("com\\.google.*")
                includeGroupByRegex("androidx.*")
            }
        }
        mavenCentral()
        gradlePluginPortal()
    }
}
dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        maven { url = uri("https://maven.aliyun.com/repository/public") }
        maven { url = uri("https://maven.aliyun.com/repository/google") }
        maven { url = uri("https://esri.jfrog.io/artifactory/arcgis") }
        google()
        mavenCentral()
    }
}

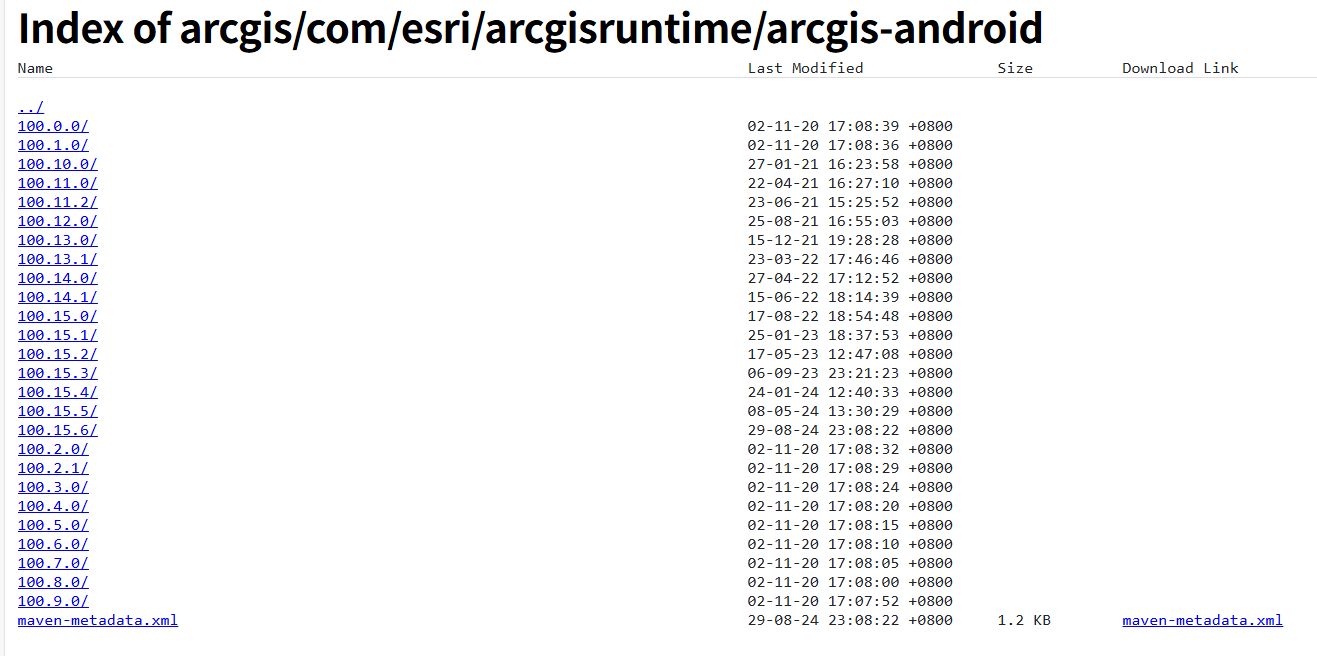

进入https://esri.jfrog.io/artifactory/arcgis网站，可以发现最新版本为100.15.6

依次打开总目录下的app文件夹——》src文件夹——》build.gradle.kts文件

对build.gradle.kts文件中dependencies {下添加

implementation("com.esri.arcgisruntime","arcgis-android","100.15.6")

dependencies {
    implementation("com.esri.arcgisruntime","arcgis-android","100.15.6")
    implementation(libs.appcompat)
    implementation(libs.material)
    implementation(libs.activity)
    implementation(libs.constraintlayout)
    testImplementation(libs.junit)
    androidTestImplementation(libs.ext.junit)
    androidTestImplementation(libs.espresso.core)
}

2.arcgis开发者API 密钥凭据

在https://location.arcgis.com/注册esri账号

注意：该步骤必须使用在https://location.arcgis.com/网站中注册的账号

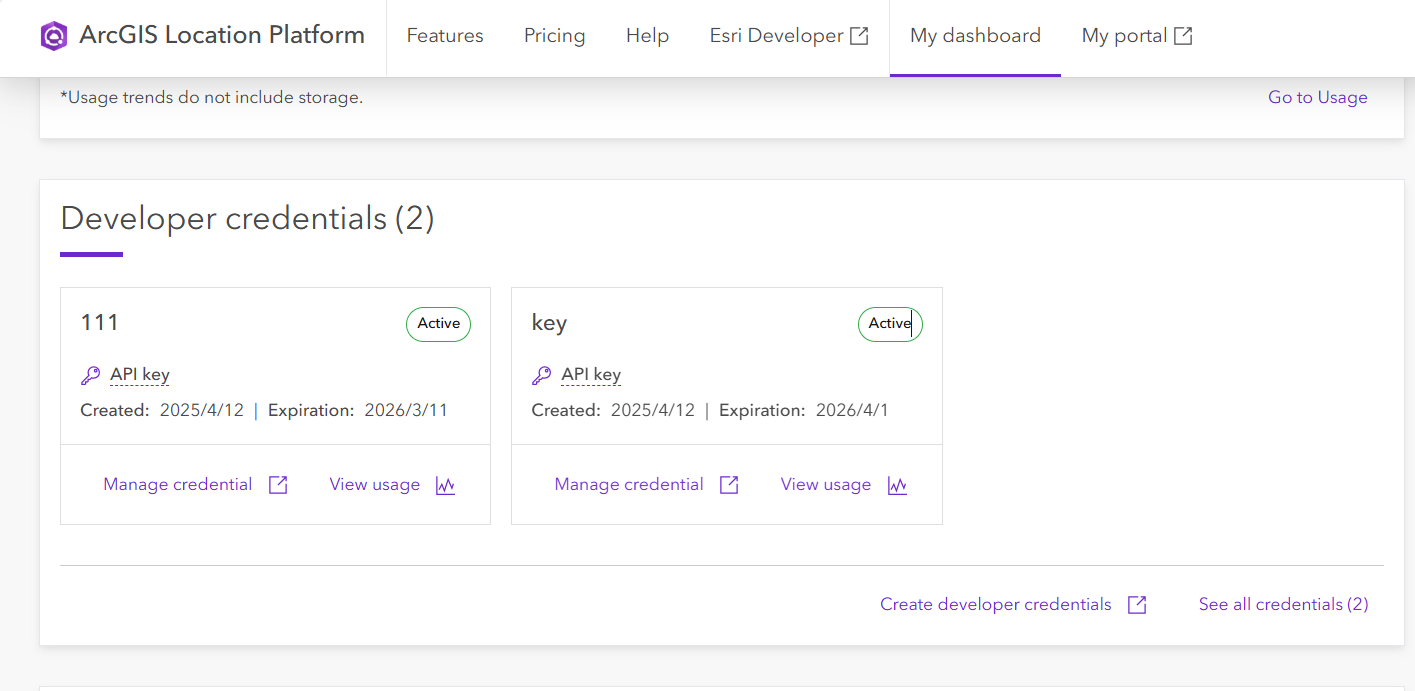

登录账号后，点击create developer credentials并选择API 密钥凭据

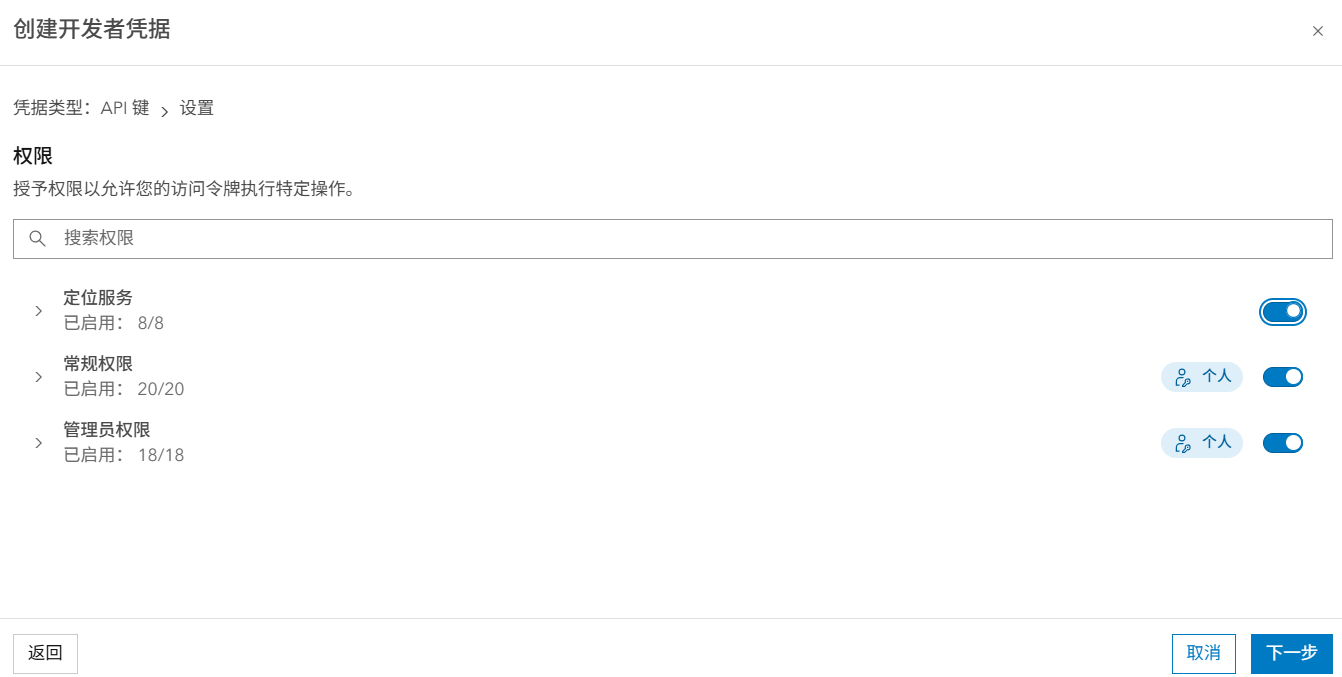

注意：新手推荐在后续步骤中对所有权限开放，否则会出现使用API 密钥凭据后地图不显示的问题

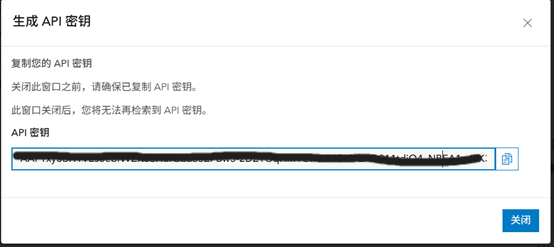

最终生成API密钥，将该密钥进行复制，为后续作准备

3.地图显示实现

依次打开总目录下的app文件夹——》src文件夹——》main文件夹——》AndroidManifest.xml

文件，对文件中代码

下添加

下添加地图视图控件代码

与此同时也打开修改对应Java文件夹中的MainActivity文件

package com.example.androidgistest;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.MapView;

public class MainActivity extends AppCompatActivity {

    MapView mMapView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        ArcGISRuntimeEnvironment.setApiKey("arcgis开发者API密钥凭证");
        mMapView = findViewById(R.id.mapview);
        mMapView.setAttributionTextVisible(false);//去logo

        ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_TOPOGRAPHIC);
        mMapView.setMap(map);
        mMapView.setViewpoint(new Viewpoint(34.056295, -117.195800, 10000));

    }

    @Override
    protected void onPause() {
        mMapView.pause();
        super.onPause();
    }

    @Override
    protected void onResume() {
        super.onResume();
        mMapView.resume();
    }

    @Override
    protected void onDestroy() {
        mMapView.dispose();
        super.onDestroy();
    }
}

注意：代码中“arcgis开发者API密钥凭证”为第二步所获取的

        ArcGISRuntimeEnvironment.setApiKey("arcgis开发者API密钥凭证");

依次打开总目录下的app文件夹——》build.gradle.kts文件

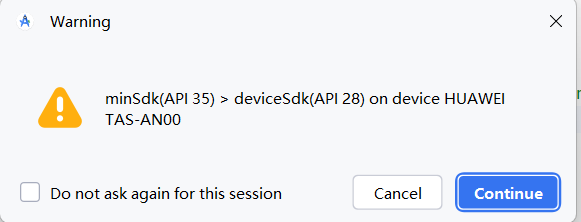

因设备sdk版本低

将build.gradle.kts文件中minsdk设置为26（根据自己设备情况适当缩小版本以保证程序成功运行）

 defaultConfig {
        applicationId = "com.example.myapplication"
        minSdk = 26
        targetSdk = 35
        versionCode = 1
        versionName = "1.0"
        testInstrumentationRunner = "androidx.test.runner.AndroidJUnitRunner"
    }

运行程序后出现以下的错误提示

2 files found with path 'META-INF/DEPENDENCIES' from inputs:

 - org.apache.httpcomponents.core5:httpcore5-h2:5.0.4/httpcore5-h2-5.0.4.jar

 - org.apache.httpcomponents.core5:httpcore5:5.0.4/httpcore5-5.0.4.jar

Adding a packaging block may help, please refer to

https://developer.android.com/reference/tools/gradle-api/com/android/build/api/dsl/Packaging

for more information

对build.gradle.kts文件中代码进行添加exclude进行依赖排除

    defaultConfig {
        applicationId = "com.example.myapplication"
        minSdk = 26
        targetSdk = 35
        versionCode = 1
        versionName = "1.0"
        testInstrumentationRunner = "androidx.test.runner.AndroidJUnitRunner"
    }
    packaging {
        resources {
            excludes +="META-INF/DEPENDENCIES"
          }
        }

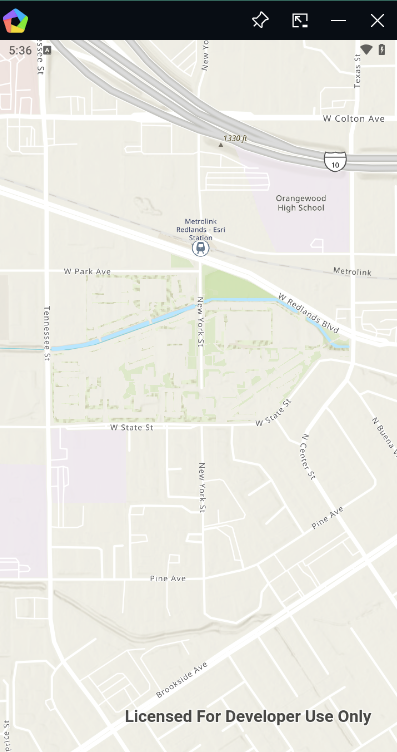

最终程序运行成功
